MG，Gantry Crane for Railway Construction
Product Name: Gantry Crane for Railway Construction
Lifting capacity: 50-900 tons Span: According to customer requirements
Lifting height: According to customer requirements

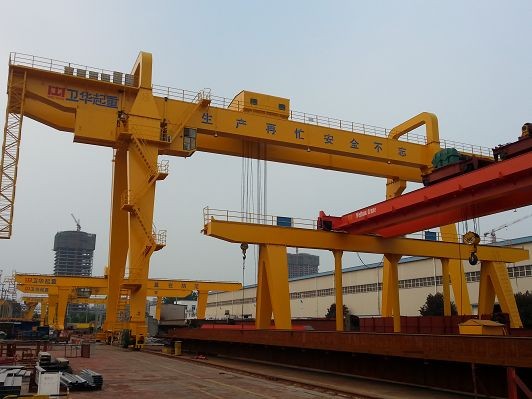

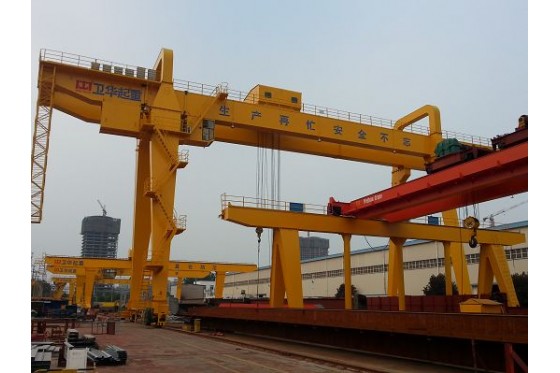

The gantry crane is specially designed for the span beam/bridge moving and transport for railway construction.
E-Mail：craneweihua@126.com
- Description
- Specification
Weihua crane ,The gantry crane is specially designed for the span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.
This product consists of main girder, rigid and flexible supporting leg, travelling mechanism, lifting mechanism, electric control system, hydraulic system, driver room, railing, ladder and walking plat.
Features:
1. Rubber tires and rail type;
2. Hydraulic driven of walking, steering and lifting;
3. Walk straight, oblique and rampage;
4. Good adaptability, high working efficiency, small space occupied;
5. Special spreader mainly used for lifting and transporting large concrete beam/bridge;
6. 2 cranes, 2 trolleys with max lifting height 30m;
7. The max wheel load is 22t when lifting 900t’s stuff;
8. 90°shift for rail type crane to achieve horizontal or vertical walking;
9. 4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope ;
10. Accurate positioning for stuff lifting down;
11. Hydraulic push for trolley to realize various lifting and save the cost;
12. For the 4 hoists, it can be single use or combine use of 2 or 4 hoists while the hardware and software are interlocked for operation safety.
Specification
|
Type |
MG |
|||||||||
|
Capacity(t) |
Main |
10 |
16 |
20 |
32 |
50 |
75 |
100 |
||
|
Aux |
|
3.2 |
5 |
5 |
10 |
20 |
20 |
|||
|
Span |
18; 22; 26; 30; 35 |
30,35 |
40 |
16 |
||||||
|
Lifting height(m) |
Main |
11 |
12 |
12 |
12 |
22 |
22 |
17.5 |
||
|
Aux |
|
16 |
14 |
14 |
24 |
|||||
|
Lifting speed |
Main |
7.4 |
9.4 |
5.8 |
7.7 |
7.68 |
6.25 |
4.62 |
||
|
(m/min) |
Aux |
|
11.2 |
12.6 |
15 |
19.8 |
9.28 |
9.28 |
||
|
Lifting motor |
Main |
YZR200L-8/15 |
YAR225M-8/22 |
YAR250M1-8/30 |
YAR280M-8/55 |
YZR315S-10/63 |
YAR315M-10/85 |
YZR315M-10/85 |
||
|
Aux |
|
YZR160L-6/11 |
YZR160L-6/15 |
YZR180L-6/15 |
YZR250M-8/35 |
YZR250M1-8/35 |
YZR250M1-8/35 |
|||
|
Rail Recommended |
43kg/m 43kg/m 50kg/m Qu80 |
Qu80 |
||||||||
|
Power |
Three phase AC 380V 50Hz |
|||||||||
