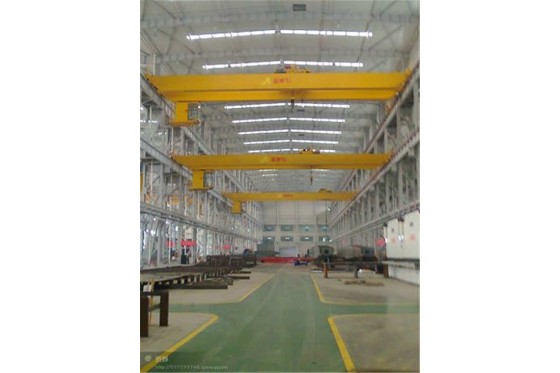

QB type Explosion-proof overhead crane
Weihua crane Explosion-proof overhead crane(Explosion-proof electric double-beam bridge crane)
Lifting weight: 5t-100t or other Span: 13.5 m - 31.5 m or other
Lifting height: 12m-30m or other
This crane is suitable for the workshop, warehouse and other working conditions with inflammable and explosive mixture, used for lifting materials, equipment installation, maintenance.
- Description
- Specification
Weihua crane Explosion-proof overhead crane(Explosion-proof electric double-beam bridge crane)
1)Weihua crane explosion-proof overhead crane type test certificate
1.1 applicable conditions
Weihua crane explosion-proof overhead crane is suitable for workshop, warehouse and other working conditions with inflammable and explosive mixtures. It is used for lifting materials, installation and maintenance of equipment.
1.2 main structural features
Main structure: the whole machine of this equipment is mainly composed of bridge frame, cart operation and trolley electrical equipment.
This crane adopts the structure of double beam, double rail and single trolley.
The winch trolley of the crane is equipped with main and secondary lifting mechanisms, each of which adopts an independent transmission system.The main and secondary lifting mechanisms can not only independently complete lifting, but also cooperate to complete the work of the turnover equipment.
The equipment is designed and manufactured in strict accordance with the provisions of the explosion-proof standard JB/T 5897-2006, and the reasonable material and structure layout is adopted to ensure the crane running smoothly without impact, reducing collision between various mechanisms and avoiding sparks and other dangerous situations.
Explosion-proof grade of this crane: dIICT4 or dIIBT4
Weihua crane explosion-proof overhead crane is a mature and reliable crane with convenient operation, smooth operation and advanced technology. It is a mature product of our company over the years.
2. Weihua crane explosion-proof overhead crane Main design, manufacturing and inspection standards
1) GB/T 3811-2008 crane design specification
2) GB 6067 -- 1985 hoisting machinery safety regulations
3) GB/T 14405 -- 1993 universal bridge crane
4) GB/T 10183-2005 tolerances for construction and track installation of bridge and gantry cranes
5) GB/T 5905-1986 crane test specifications and procedures
6) JB/T 4315 -- 1997 electronic control equipment for cranes
7)GB/T 6974-1986 lifting machinery terminology
8)GB/T 17908-1999 "technical performance and acceptance documents of cranes and lifting machinery"
9)GB/T 20303.5-2006 "crane driver's cab"
10)GB/T 5897-2006 explosion-proof bridge crane
Weihua crane explosion-proof overhead craneWeihua crane Explosion-proof overhead crane(Explosion-proof electric double-beam bridge crane)
1)Weihua crane explosion-proof overhead crane type test certificate
1.1 applicable conditions
Weihua crane explosion-proof overhead crane is suitable for workshop, warehouse and other working conditions with inflammable and explosive mixtures. It is used for lifting materials, installation and maintenance of equipment.
1.2 main structural features
Main structure: the whole machine of this equipment is mainly composed of bridge frame, cart operation and trolley electrical equipment.
This crane adopts the structure of double beam, double rail and single trolley.
The winch trolley of the crane is equipped with main and secondary lifting mechanisms, each of which adopts an independent transmission system.The main and secondary lifting mechanisms can not only independently complete lifting, but also cooperate to complete the work of the turnover equipment.
The equipment is designed and manufactured in strict accordance with the provisions of the explosion-proof standard JB/T 5897-2006, and the reasonable material and structure layout is adopted to ensure the crane running smoothly without impact, reducing collision between various mechanisms and avoiding sparks and other dangerous situations.
Explosion-proof grade of this crane: dIICT4 or dIIBT4
Weihua crane explosion-proof overhead crane is a mature and reliable crane with convenient operation, smooth operation and advanced technology. It is a mature product of our company over the years.
2. Weihua crane explosion-proof overhead crane Main design, manufacturing and inspection standards
1) GB/T 3811-2008 crane design specification
2) GB 6067 -- 1985 hoisting machinery safety regulations
3) GB/T 14405 -- 1993 universal bridge crane
4) GB/T 10183-2005 tolerances for construction and track installation of bridge and gantry cranes
5) GB/T 5905-1986 crane test specifications and procedures
6) JB/T 4315 -- 1997 electronic control equipment for cranes
7)GB/T 6974-1986 lifting machinery terminology
8)GB/T 17908-1999 "technical performance and acceptance documents of cranes and lifting machinery"
9)GB/T 20303.5-2006 "crane driver's cab"
10)GB/T 5897-2006 explosion-proof bridge crane
Weihua crane explosion-proof overhead crane
