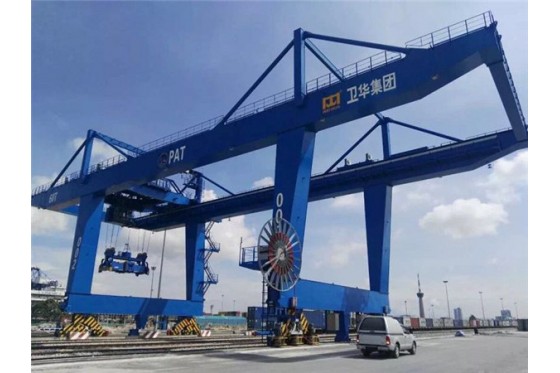

GJM type Container Rail Mounted Gantry Crane
E-Mail：craneweihua@126.com
- Description
- Specification
Weihua crane GJM type rail-type container gantry crane is suitable for handling and loading and unloading of international standard containers in container yard and railway container transit station, with stable performance, high production efficiency and easy maintenance.
Weihua crane GJM type rail container gantry crane adopts double girder gantry structure and single trolley winch structure (mobile driver's cab can be used).
Weihua crane GJM type rail container gantry crane, the whole machine is composed of gantry and lifting mechanism, trolley operation mechanism, cart operation mechanism, and cable drum (or safety sliding contact line), trolley power supply system.It is equipped with special container spreader, anchor device, windbreak cable device, lightning arrester device, anemometer and other accessories.
Weihua crane GJM type rail container gantry crane main design, manufacture, inspection standards
GJM type Crane design and manufacture in accordance with the following international standards and specifications.
GB/ t3811-2008 crane design specification
GB/ t5905-1986 crane test specifications and procedures
Safety regulations for hoisting machinery
Manufacturing and rail mounting tolerances for bridge and gantry cranes
GB/ t14406-1993 universal gantry crane
GB/ t14407-1993 technical conditions for cab drivers of general bridge and gantry cranes
JB/ t4315-1997 standard for crane electronic control equipment
GB/ t19683-2005 port container gantry crane
GB9818 -- 2006 steel wire rope for important USES
JB/ZQ2007 crane electrical drawing
IS0 international standards committee
IEC international electrotechnical commission standard
Safety: wind load calculation and wind protection safety requirements for mechanical loading and unloading in port (ministry of communications JT/ t90-2008)
Installation: in accordance with the quality inspection standard of port equipment installation project (jtj244-2005), electrical test standard of cranes
3. Main technical parameters
The crane is equipped with special container lifting device, which can be used to lift 20', 40' and 45' containers of international ISO standard and Chinese standard.
Specification
