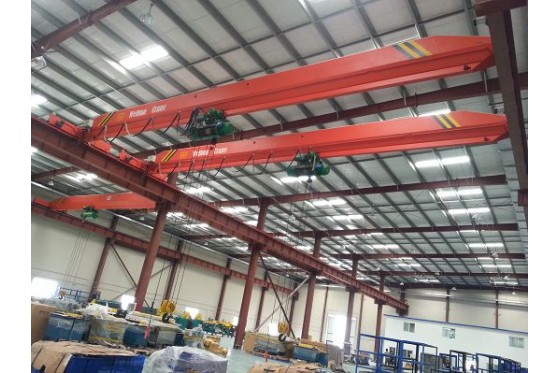

LD Model Single Girder Overhead Crane Supplier
Product Category : LD Model Single Girder Overhead Crane Supplier
Capacity：1~20T Span: 4~31.5m or other
Lifting height: 6,9,12,18,24,30m or other
Lifting speed: 0.8m/min,8m/min,0.8/8m/min,0.8-8m/min
E-Mail：craneweihua@126.com
- Description
- Specification
Product Details
Weihua Crane. LD model single girder overhead crane (Weihua crane ld-type electric single-beam crane) is designed in accordance with gb3811-2008 and JB/ t1306-2008 standards. It is a workshop hoisting equipment matched with CD1, MD1, WH164 and other types of electric hoist. It is widely used in machining, assembly, repair, warehouse and other work occasions.It is an important tool and equipment for modern industrial enterprises to realize mechanization and automation of production process, reduce heavy manual labor and improve labor productivity.Our company has 22 years of electric single-beam crane design and production history, in the electric single-beam design and production has accumulated rich experience, can be designed to adapt to various working conditions of non-standard electric single-beam crane.
Weihua Crane. LD model single girder overhead Crane(Weihua crane, LD type electric single-girder crane) is suitable for the A3 and A4 at the working level, working environment temperature 25 ℃ ~ + 40 ℃, relative humidity of 85 or less of no inflammable, explosive danger under the working conditions and the corrosive medium environment.The lifting weight is 1 ~ 20 tons and the span is 4 ~ 31.5 meters.
Crane operating mechanism is driven separately, driving and braking are accomplished by conical rotor motor, and the transmission is driven by "one open two closed" gear.
Crane operation mode can be selected as ground operation, remote control operation and driver room operation according to the specific situation.
The product has the advantages of compact structure, good rigidity, easy operation, low noise, safe and reliable, beautiful shape and so on.The main components are: bridge frame, electric hoist, electric control system.
Parameters
|
Capacity(T) |
1,2,3,5,10,16,20 |
|||||
|
Span(m) |
4~28.5 |
|||||
|
Lifting height(m) |
6,9,12,18,24,30 |
|||||
|
Crane travelling mechanism |
Travelling speed(m/min) |
20 |
30 |
(room)45 |
(room)60 |
|
|
Motor |
Type |
|||||
Weihua Crane. LD model single girder overhead Crane(Weihua crane LD type electric single-beam crane) reference standard Our company will design, manufacture and test the contract equipment according to the following standards and regulations.In the following standards, priority shall be given to the adoption of national standards and standards of the ministry of machinery.
GB 3811 crane design specification
JB/T1306 electric single-beam crane
GB 5905 crane test specification and procedure
Technical conditions of wire rope electric hoist
JB4315 crane electronic control equipment
GB50256 code for construction and acceptance of crane electrical equipment
Electric single-beam crane bridge is composed of main beam and end beam device.The end beam device is also composed of running motor, reducer, main and passive wheel set, rubber buffer and other components.
Weihua crane crane standard power supply is three-phase 380V(plus or minus 10%, the lower limit of peak current is -15%), 50Hz, but also according to customer requirements for the design of three-phase 690V power supply, frequency of 50 ~ 60HZ electrical control system.
Product Details
Weihua Crane. LD model single girder overhead crane (Weihua crane ld-type electric single-beam crane) is designed in accordance with gb3811-2008 and JB/ t1306-2008 standards. It is a workshop hoisting equipment matched with CD1, MD1, WH164 and other types of electric hoist. It is widely used in machining, assembly, repair, warehouse and other work occasions.It is an important tool and equipment for modern industrial enterprises to realize mechanization and automation of production process, reduce heavy manual labor and improve labor productivity.Our company has 22 years of electric single-beam crane design and production history, in the electric single-beam design and production has accumulated rich experience, can be designed to adapt to various working conditions of non-standard electric single-beam crane.
Weihua Crane. LD model single girder overhead Crane(Weihua crane, LD type electric single-girder crane) is suitable for the A3 and A4 at the working level, working environment temperature 25 ℃ ~ + 40 ℃, relative humidity of 85 or less of no inflammable, explosive danger under the working conditions and the corrosive medium environment.The lifting weight is 1 ~ 20 tons and the span is 4 ~ 31.5 meters.
Crane operating mechanism is driven separately, driving and braking are accomplished by conical rotor motor, and the transmission is driven by "one open two closed" gear.
Crane operation mode can be selected as ground operation, remote control operation and driver room operation according to the specific situation.
The product has the advantages of compact structure, good rigidity, easy operation, low noise, safe and reliable, beautiful shape and so on.The main components are: bridge frame, electric hoist, electric control system.
Parameters
|
Capacity(T) |
1,2,3,5,10,16,20 |
|||||
|
Span(m) |
4~28.5 |
|||||
|
Lifting height(m) |
6,9,12,18,24,30 |
|||||
|
Crane travelling mechanism |
Travelling speed(m/min) |
20 |
30 |
(room)45 |
(room)60 |
|
|
Motor |
Type |
|||||
Weihua Crane. LD model single girder overhead Crane(Weihua crane LD type electric single-beam crane) reference standard Our company will design, manufacture and test the contract equipment according to the following standards and regulations.In the following standards, priority shall be given to the adoption of national standards and standards of the ministry of machinery.
GB 3811 crane design specification
JB/T1306 electric single-beam crane
GB 5905 crane test specification and procedure
Technical conditions of wire rope electric hoist
JB4315 crane electronic control equipment
GB50256 code for construction and acceptance of crane electrical equipment
Electric single-beam crane bridge is composed of main beam and end beam device.The end beam device is also composed of running motor, reducer, main and passive wheel set, rubber buffer and other components.
Weihua crane crane standard power supply is three-phase 380V(plus or minus 10%, the lower limit of peak current is -15%), 50Hz, but also according to customer requirements for the design of three-phase 690V power supply, frequency of 50 ~ 60HZ electrical control system.
