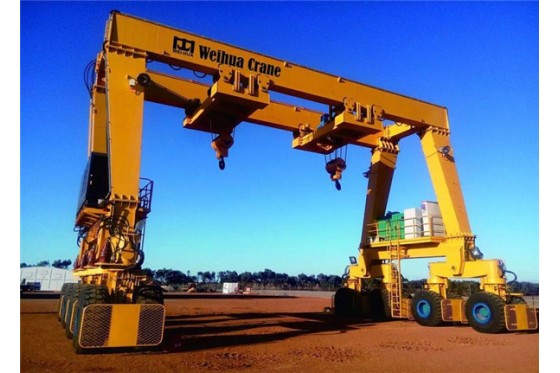

RTG type Rubber Tired Container Gantry Crane CU-TR COC
Product Name: Rubber Tired Container Gantry Crane / RTG
Capacity: 35t, 40t Working Level: A6, A7, A8 Span: 17m-30m

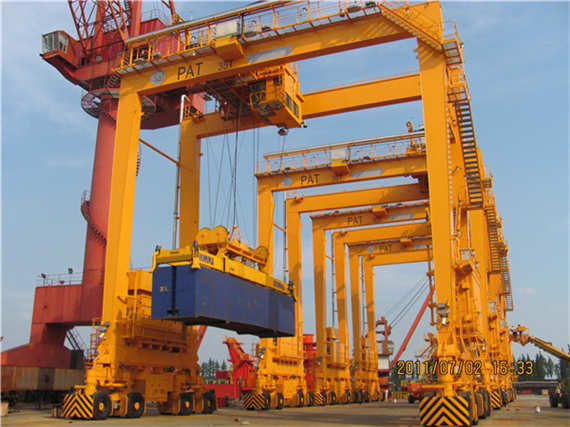

RTG type Rubber Tired Container Gantry Crane (Wheeled container gantry crane )is suitable for handling and loading and unloading of international standard containers. It has advanced performance, high production efficiency, good mobility and little sensitivity to ground inequality.
E-Mail：craneweihua@126.com
- Description
- Specification
Weihua crane RTG type Rubber Tired Container Gantry crane adopts double girder Gantry frame structure, single trolley winch structure, power supply for diesel generator, oil circuit and hydraulic system with heating device, can work at low temperature.(mobile driver's cab is available)
Weihua crane RTG type Rubber Tired Container Gantry crane is composed of door frame, lifting mechanism, trolley operating mechanism, cart operating mechanism and other mechanisms, as well as diesel generator set, trolley power supply system and other power supply systems.Equipped with container crane, windbreak cable device, anemometer and other accessories.
Weihua crane RTG type Rubber Tired Container Gantry crane main design, manufacture, inspection standards
Crane design and manufacture in accordance with the following international standards and specifications.
GB/ t3811-2008 crane design specification
GB/ t5905-1986 crane test specifications and procedures
Safety regulations for hoisting machinery
Manufacturing and rail mounting tolerances for bridge and gantry cranes
GB/ t14406-1993 universal gantry crane
GB/ t14407-1993 technical conditions for cab drivers of general bridge and gantry cranes
JB/ t4315-1997 standard for crane electronic control equipment
GB/ t19683-2005 port container gantry crane
GB9818 -- 2006 steel wire rope for important USES
JB/ZQ2007 crane electrical drawing
IS0 international standards committee
IEC international electrotechnical commission standard
Safety: wind load calculation and wind protection safety requirements for mechanical loading and unloading in port (ministry of communications JT/ t90-2008)
Installation: in accordance with the quality inspection standard of port equipment installation project (jtj244-2005), electrical test standard of cranes.
The RTG crane is equipped with special container lifting device, which can be used to lift 20', 40' and 45' containers of international ISO standard and Chinese standard.
