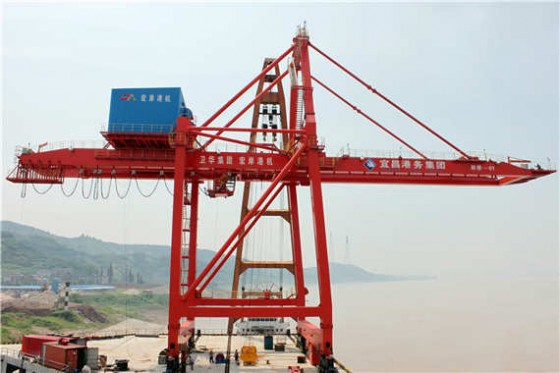

AJ type Quayside Container Crane
Product Name:AJ type Quayside Container Crane
Lifting Weight: 16t-55t Above Rail: 18-24m Outreach: 20-55m
Weihua crane AJ type Quayside Container Crane is a container handling gantry crane installed at large dockside for loading and unloading ship-borne containers from ships.
E-Mail：craneweihua@126.com
- Description
- Specification
Description
Weihua crane AJ type Quayside Container Crane is a container handling gantry crane installed at large dockside for loading and unloading ship-borne containers from ships. The dockside container crane is composed of a supporting frame that can travel on a rail track. Instead of a hook, the cranes are equipped with a specialized spreader which can be locked on the container.
1. Rated load lifting capacity (t/h ): 400, 500, 600, 800, 1000, 1250, 1500, 1800, 2000, 2250, 2500, 3000, 3600, 4000, 4500, 5000.2. Rated load lifting capacity priority ( t ): 10, 12.5, 16, 20, 25, 32, 40, 45, 50, 56, 63, 71, 80, 90.
3. Working Level:
|
Standard |
GB3811-2008 |
|
Use Classes |
U8 |
|
Load-up Condition |
Q4 |
|
Work Level |
A8 |
4. Working Level of Mechanisms:
|
Mechanism |
Using Grade |
Load-up Condition |
Work Level |
|
Lifting/Closing |
T8 |
L4 |
M8 |
|
Trolley |
T8 |
L4 |
M8 |
|
Crane |
T5 |
L3 |
M6 |
|
Front Girder Pitching |
T4 |
L3 |
M5 |
|
Cab |
T4 |
L3 |
M5 |
5. Working Speed:
|
Mechanism |
Speed ( m/min ) |
|
Lifting/Closing ( full load/without load ) |
60~80/100~240 |
|
Trolley Traveling |
100~280 |
|
Crane Traveling |
20~40 |
|
Front Girder Pitching |
5~10 ( one way ) |
|
Cab Traveling |
20~25 |
6. Steel Structure:
|
Design Service Time |
20~30 years |
|
Load Character |
Consecutive, heavy-duty, alternating |
|
Operating Character |
Cycle operation, work busy, high impact |
7. Components of Steel structure: crane chassis, back pull rod, tower frame, front pull rod, front girder, gantry frame, funnel scaffold, angling strut, back girder.
Specification
| Rated productivity priority | t/h | 600~2500 | ||
| Lifting Capacity | t | 16, 32 , 55 | ||
| Lifting Height | m | Above Rail 18~24 Below Rail 1 | ||
| Proportion of material stack | t/m³ | 0.9~3.0 | ||
| Max Outreach | m | 20~55 | ||
| Track Gauge | m | 17, 30 | ||
| Wheel Base | m | 12, 17 | ||
| Lifting/Closing Speed | m/min | 100~150 | ||
| Trolley Traveling Speed | m/min | 120~150 | ||
| Pitching Time | min | 5 | ||
| Crane Traveling Speed | m/min | 20 | ||
| Max Wheel Load | KN | 200 | ||
| Power Supply | 10KV, 50Hz, 3Phase | |||
