Wire Rope Electric Hoist

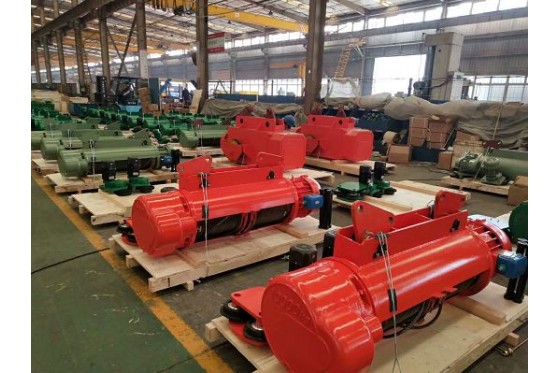

Product Name:Weihua crane, Wire Rope Electric Hoist CD1/ MD1

Lifting Weight: 0.25t-32t

Lifting Height: 6m-45m

Working Level: A4

Weihua crane, Model CD1 MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane.

E-Mail：craneweihua@126.com

Description
Specification

Description

Weihua crane,Model CD1 MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, it can be also used as winch.

It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. Model CD1 hoist has only one normal speed, which can satisfy normal application. Model MD1 hoist has 2 working speeds: normal and low speed. At low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools.

Model	Lifting Weight	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
CD 1T-12M	1	8	20	ZD22-4	1.5	ZDY11-4	0.2	172
CD 3T-12M	3	8	20	ZD41-4	7.5	ZDY12-4	0.8	597
CD 5T-12M	5	8	20	ZD41-4	7.5	ZDY21-4	0.8	597
CD 10T-12M	10	7	20	ZD51-4	13	ZDY21-4	0.8	1100
CD12T-12M	12	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 16T-12M	16	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 20T-12M	20	4.2	14	ZD52-4	18.5	ZDY21-4	0.8	1930
CD 32T-12M	32	3	16	ZDx62-6	18.5	ZDY22-4	1.5	2950

Note: Lifting height can be customized i.e. 6m, 9m, 20m

Weihua crane 100t electric hoist (wire rope electric hoist) test bed, our company each electric hoist

before leaving the factory to do dynamic load and static load type test, to ensure product quality,

maximum protection of customer interests

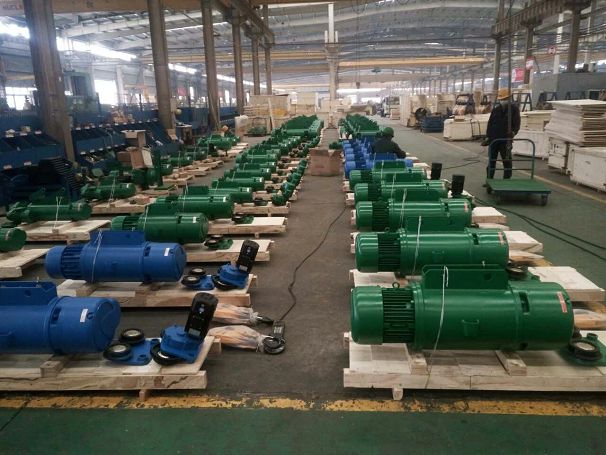

Weihua crane，Electric hoist (wire rope electric hoist) production line

Description

Model	Lifting Weight	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
CD 1T-12M	1	8	20	ZD22-4	1.5	ZDY11-4	0.2	172
CD 3T-12M	3	8	20	ZD41-4	7.5	ZDY12-4	0.8	597
CD 5T-12M	5	8	20	ZD41-4	7.5	ZDY21-4	0.8	597
CD 10T-12M	10	7	20	ZD51-4	13	ZDY21-4	0.8	1100
CD12T-12M	12	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 16T-12M	16	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 20T-12M	20	4.2	14	ZD52-4	18.5	ZDY21-4	0.8	1930
CD 32T-12M	32	3	16	ZDx62-6	18.5	ZDY22-4	1.5	2950

Note: Lifting height can be customized i.e. 6m, 9m, 20m

Weihua crane 100t electric hoist (wire rope electric hoist) test bed, our company each electric hoist

before leaving the factory to do dynamic load and static load type test, to ensure product quality,

maximum protection of customer interests

Weihua crane，Electric hoist (wire rope electric hoist) production line
