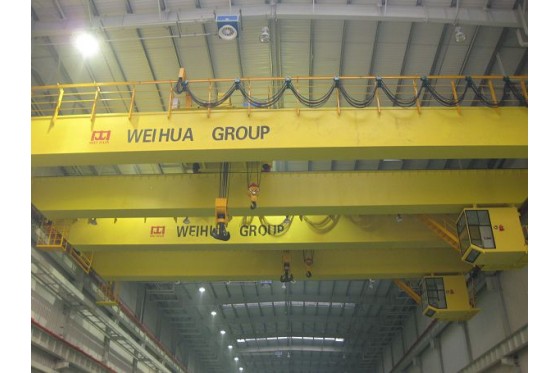

FEM European low headroom electric double beam bridge crane
Product Name: Weihua crane,Low clearance electric double beam bridge crane
Capacity: 5-500t Span: 13.5m-31.5m or other Lifting Height: 9-26m or other
Low headroom electric double beam crane and ordinary electric double beam crane, light weight of about 10%~35%, wheel pressure can be reduced by about 10%~30%, their height is reduced by 20~40%, which greatly reduces the cost of the plant
E-Mail：craneweihua@126.com
- Description
- Specification
Weihua crane,FEM European low headroom electric double beam bridge crane
1.1 applicable conditions
Weihua crane low-clearance electric double-beam crane is suitable for all kinds of general working conditions, used for lifting materials, equipment installation, maintenance, is a widely used general lifting equipment.
1.2 main structural features
Main structure: the whole equipment is mainly composed of bridge frame, cart operation, trolley, driver's cab and electrical equipment.
Weihua crane low-clearance electric double-beam crane is arranged according to the low-clearance structure, which adopts the structure type of double-beam off-track, lightweight winch trolley.
The hoisting trolley of the crane is equipped with the main and deputy hoisting mechanism (or only the main hoisting mechanism or the double trolley hoisting mechanism), each of which adopts an independent transmission system.The main and secondary lifting mechanisms can not only independently complete lifting, but also cooperate to complete the work of the turnover equipment.
The operating mechanism of Weihua crane low-clearance electric double-beam crane is driven by three-in-one deceleration motor, which is simple in structure and convenient in maintenance.Its frequency conversion system can provide smooth acceleration characteristics and a variety of running speeds, smooth starting and braking, simple operation, accurate positioning.
Weihua crane, low headroom double electric single beam cranes compared with ordinary electric double beam bridge crane, light dead weight about 10% ~ 10%, wheel pressure can reduce about 10% ~ 10%, and its height is 20 ~ 40%, this greatly reduces the cost of building, and, as a result of chosen high quality, high quality parts, durable, safe and reliable products, make the product of the normal maintenance, maintenance work reduced, total installed power (power consumption) also reduced at the same time, to save the cost.
The crane mature and reliable, easy to operate, smooth operation, advanced technology, is our company's mature products over the years.
2. Main design, manufacturing and inspection standards
1) GB/T 3811-2008 crane design specification
2) GB 6067 -- 1985 hoisting machinery safety regulations
3) GB/T 14405 -- 1993 universal bridge crane
4) GB/T 10183-2005 tolerances for construction and track installation of bridge and gantry cranes
5) GB/T 5905-1986 crane test specifications and procedures
6) JB/T 4315 -- 1997 electronic control equipment for cranes
