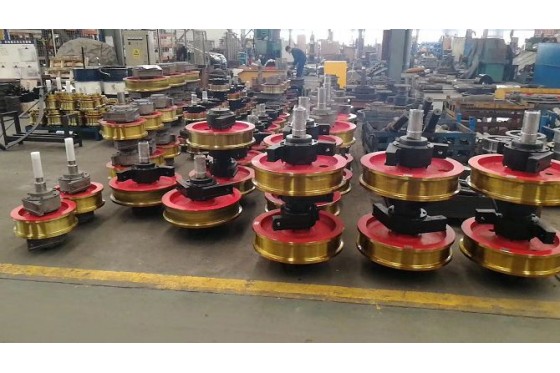

FEM integral wheel group (FEM European crane only)
FEM integral wheel group (FEM European crane only)
Wheel material zg340-640 (CL60) and advanced power frequency heat treatment quenching.Its hardness conforms to:
Hardness of tread and inner side of flange (HB) ≥300 ~ 380
Minimum depth of hardened layer (mm) 20
The hardness (HB) of minimum hardened layer depth is ≥260
- Description
- Specification
WEIHUA CRANE,FEM integral wheel group (FEM European crane only)
(1) the wheel group using special support surface design, trolley frame, large end beam and wheel assembly support surface using the overall processing, to ensure the horizontal and vertical deflection of the wheels, assembly precision is high, stable operation, the car wheel group can be very convenient to exit replacement, is the introduction of domestic conversion of foreign products advanced technology.
(2) the wheel diameter and material selection, is in accordance with the most adverse conditions under the wheel by the maximum supporting force, to ensure that part of the wheel overload phenomenon.
The wheel material USES zg340-640 (CL60), and carries on the advanced power frequency heat treatment quenching.Its hardness conforms to:
Hardness of tread and inner side of flange (HB) ≥300 ~ 380
Minimum depth of hardened layer (mm) 20
The hardness (HB) of minimum hardened layer depth is ≥260
(4). The accuracy of wheel tread diameter shall not be lower than h9 stipulated in gb1800-1804 "tolerance and cooperation", and the circle beat of the wheel reference end surface after assembly shall not be lower than 9 level in gb1182-1184.
(5) the tread and inner edge of the wheel shall not have defects affecting the working performance, and shall not be welded and repaired.
