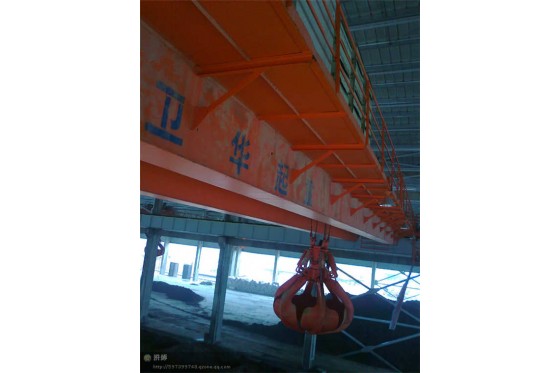

Grab hook dual - purpose bridge machine
Grab hook dual - purpose bridge machine
Lifting weight: 5-20t Span: 10.5 m - 31.5 m Lifting height: 9m-30m
This crane is suitable for lifting materials, equipment installation and maintenance when two kinds of lifting devices, grab bucket and hook, are needed at the same time.E-Mail：craneweihua@126.com
- Description
- Specification
1.1 applicable conditions
Weihua crane,This crane is suitable for lifting materials, equipment installation and maintenance when two kinds of lifting devices, grab bucket and hook, are needed at the same time.
1.2 main structural features
Main structure: the whole machine of this equipment is mainly composed of bridge frame, cart operation, trolley, grab bucket, driver's cab and electrical equipment.
Weihua crane,This crane adopts the structure of double beam, double rail and single trolley.
The crane trolley is provided with a grab type lifting mechanism and a hook type lifting mechanism.
The crane mature and reliable, easy to operate, smooth operation, advanced technology, is our company's mature products over the years.
2. Main design, manufacturing and inspection standards
1) GB/T 3811-2008 crane design specification
2) GB 6067 -- 1985 hoisting machinery safety regulations
3) GB/T 14405 -- 1993 universal bridge crane
4) GB/T 10183-2005 tolerances for construction and track installation of bridge and gantry cranes
5) GB/T 5905-1986 crane test specifications and procedures
6) JB/T 4315 -- 1997 electronic control equipment for cranes
7)GB/T 6974-1986 lifting machinery terminology
8)GB/T 17908-1999 "technical performance and acceptance documents of cranes and lifting machinery"
9)GB/T 20303.5-2006 "crane driver's cab"
