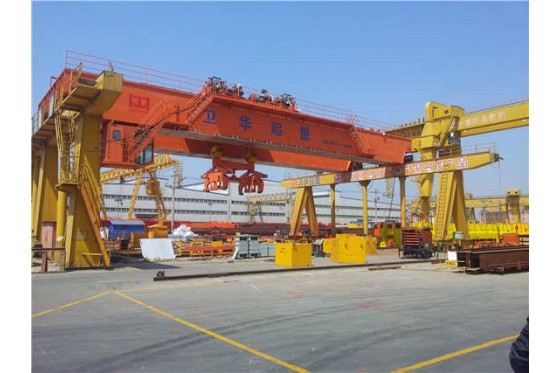

QD Overhead Crane with Clamps
Product Name: Overhead Crane with Clamps
Capacity: 35-65t
Span: 27.5-37m
Lifting Height: 12m
The clamp overhead crane is widely used in outdoor and indoor environments such as steel mills, shipyards, ports, storage yards, and warehouses for loading, unloading steel slabs, section bar etc.
E-Mail：craneweihua@126.com
- Description
- Specification
Product Name: Weihua crane,Overhead Crane with Clamps
Capacity: 35-65t
Span: 27.5-37m
Lifting Height: 12m
The clamp overhead crane is widely used in outdoor and indoor environments such as steel mills, shipyards, ports, storage yards, and warehouses for loading, unloading steel slabs, section bar etc.
1.1 applicable conditions (USES)
Weihua crane, clamp hook bridge crane is on the basis of the general bridge crane, the selection of different clamps clamps for lifting steel plate and steel coil and other objects.
Among them, the slab clamping crane is located at the billet discharging span and is used for the billet downline.The billet is more than 600 ℃, the weak magnetism, namely lose magnetism, can only use clamp handling.
1.2 main structural features
Weihua crane, clamps hook bridge crane is mainly based on the clamps as the lifting device, the rated lifting weight is the sum of the weight and self-weight of the items lifted by the clamps.Adopt the structure of double beam, double track and single trolley.

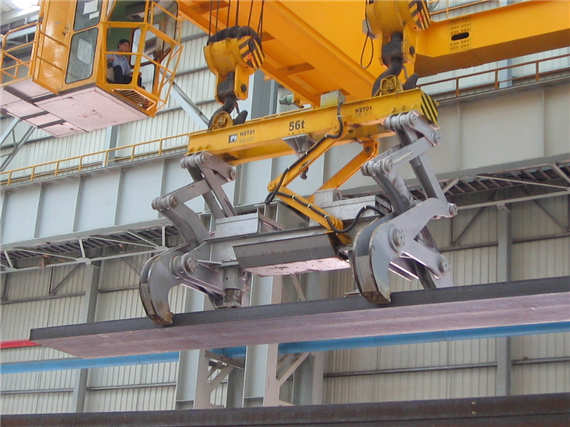

The winch trolley of the crane is equipped with main and secondary lifting mechanisms, each of which adopts an independent transmission system.The main and secondary lifting mechanism carries the steel plate or coil through the clamping device under the hook.Clamps lifting device adopts mechanical or electric clamps, among which the mechanical clamps adopts lever principle, without external force assistance, by self-weight locking, open and close device positioning, can achieve the clamping of the billet.The electric clamps use the electric winch system to realize the open and close action of the spreader, which can freely control the size of the opening.
This crane is good choice especially for lift and transport different slabs with different clamps basing on the standard and weight of materials (thickness, length and the stack). Also we can provide speed regulation (1:10 or more) for each mechanism and the overload alarm, remote control, PLC control, malfunction detection and display system.
weihua crane Specification
