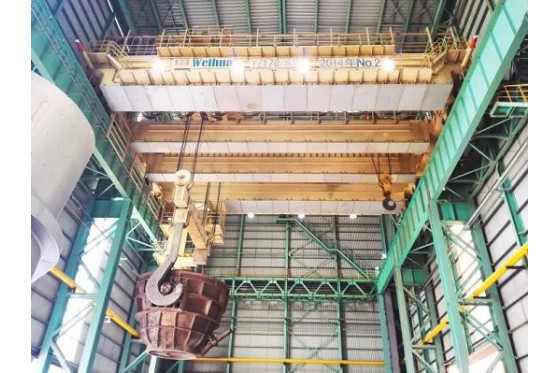

YZ Metallurgy Overhead Crane Supplier
Product Name: Weihua crane,YZ Overhead Crane for Metallurgy,Casting crane
Capacity: 5t-320t Span: 13.5-31.5m or other
Lifting Height: 12m-32m or other
Weihua crane Overhead crane for Metallurgy,Casting crane crane in high temperature, high dust environment lifting liquid metal, frequent use, high level of work
E-Mail：craneweihua@126.com
- Description
- Specification
1.1 applicable conditions of the product
Weihua crane Overhead crane for Metallurgy,Casting crane crane in high temperature, high dust environment lifting liquid metal, frequent use, high level of work.It is mainly used for adding molten iron to converter straddling converter, lifting molten iron to refining furnace in refining span, or lifting molten steel to continuous casting rotary ladle in molten steel span.
1.2 mainstructural features
According to the general structure, Weihua crane Overhead crane for Metallurgy,Casting crane can be divided into double-beam double-rail single trolley, four-beam four-rail double trolley, four-beam six-rail double trolley and other forms.
Double beam, double rail and single trolley is generally used for small tonnage casting crane (less than 160 tons), which is composed of trolley, truck operating mechanism, bridge and electronic control system.
Four beam four rail double trolley is generally used for medium and large tonnage casting crane (100 ~ 320 tons).By the main car, deputy car, cart running mechanism, bridge and electronic control system;
The form of four-beam, six-rail and double-trolley is generally used for casting cranes with large tonnage (over 320 tons). The main purpose is to solve the problem of excessive pressure on the main small wheels and improve the stress state of the main trolley frame.By the main car, deputy car, cart running mechanism, bridge and electronic control system.
Baosteel zhanjiang steel 170t four beam casting crane
2. Weihua crane Overhead crane for Metallurgy,Casting crane mainly designs, manufactures and tests standards
GB/ t3811-2008 crane design specification
Gb6067-85 crane safety regulations
GB/ t5905-1986 crane test specifications and procedures
Manufacturing and rail mounting tolerances for bridge and gantry cranes
GB/T 5972-2006 practical specification for inspection and scrap of steel wire rope for hoisting machinery
JB/ t4315-1997 crane electronic control equipment
JB/ t7688.1-2008 general requirements for technical conditions of metallurgical cranes
Metallurgical crane technical conditions casting crane
Hebei anfeng iron and steel 320t four beam six rail casting crane
Jiangxi pinggang 225t casting crane
Baotou steel 60t automatic steel pipe distribution crane
Shandong iraeta heavy industry 250t forging crane
Beihai chengde nickel industry automatic tank crane
